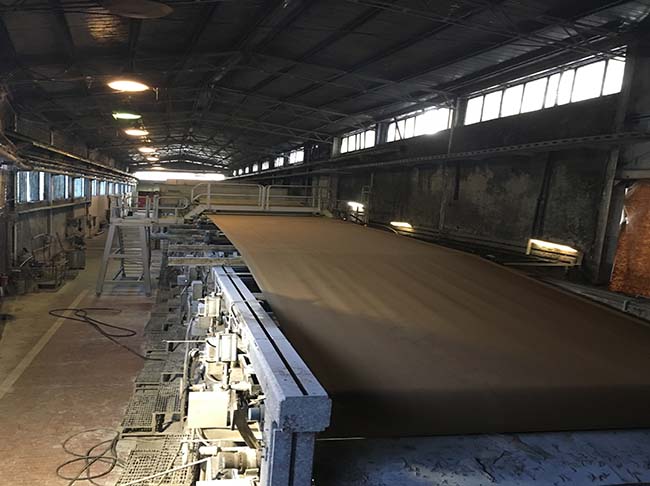

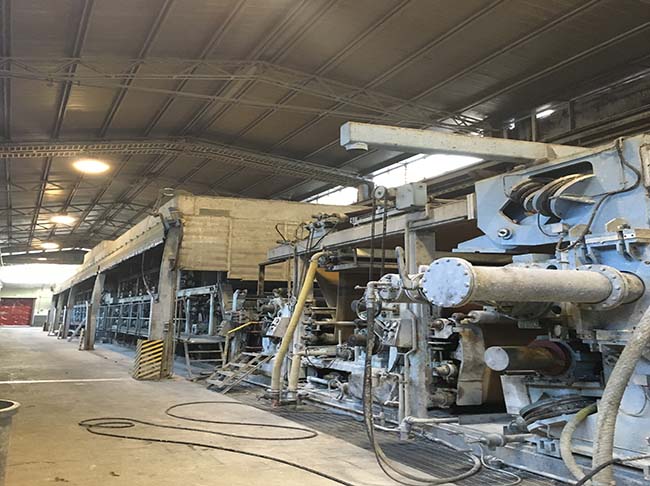

BOARD MACHINE ref. 125
- Width 2590 mm- Manufacturer Celli
- Year 1965
- Capacity 90 tpd
- Speed min 60 m/min
- Grammage 320 – 1000 gsm
- Product white/white, grey/grey, brown/grey, white/grey
Technical description / main equipments

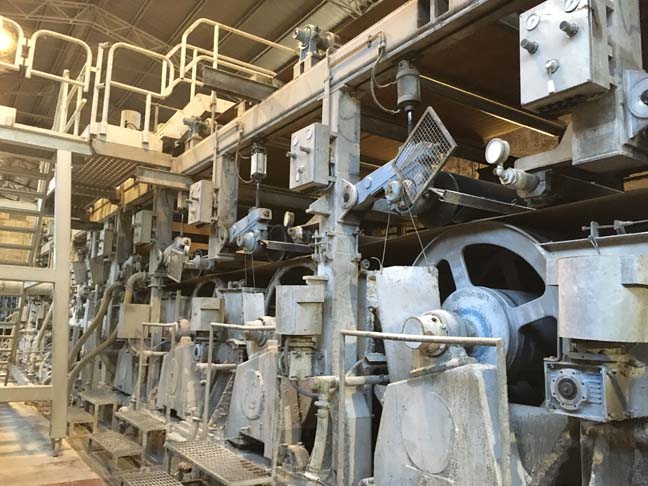

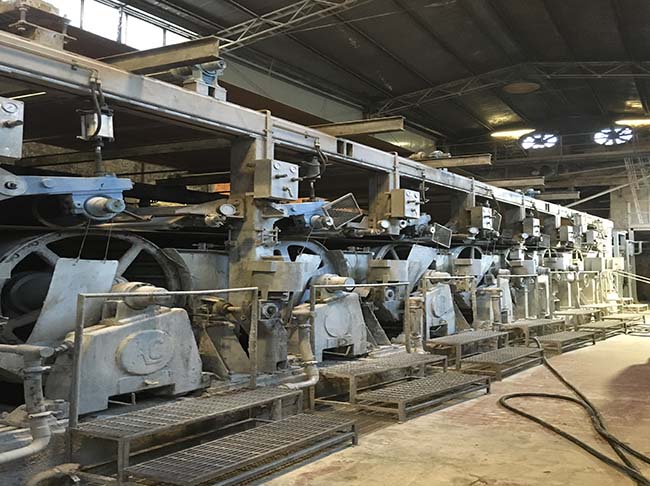

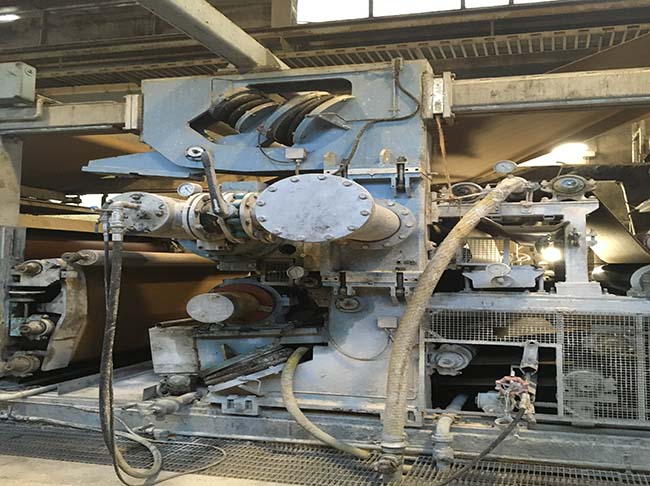

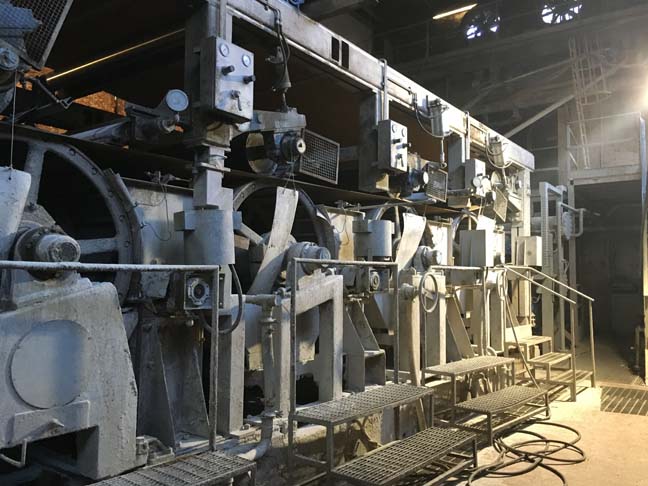

N° 9 Formers diameter 1250 manufacturer Celli with crushing press and felt lenght 52 mtN°9 Head boxes with perforated rolls

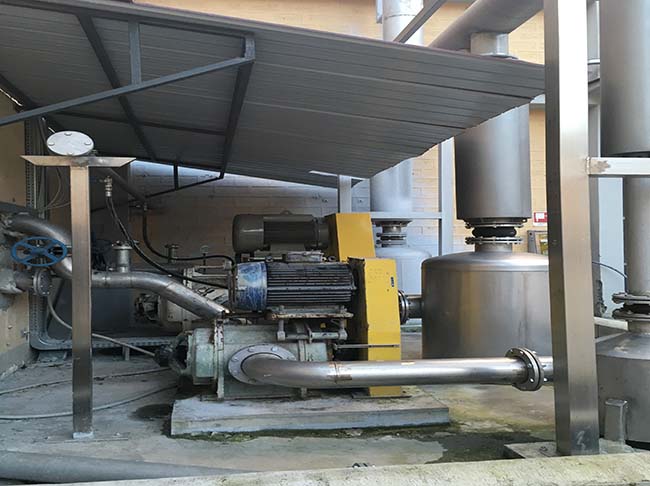

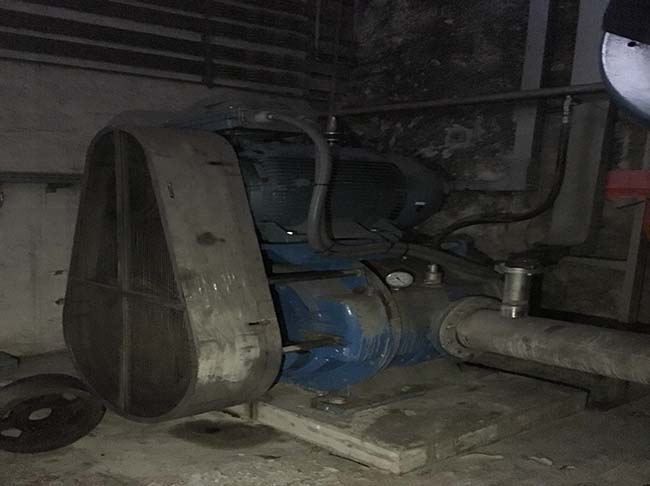

N°1 Vacuum pump for feeding suction pumps.

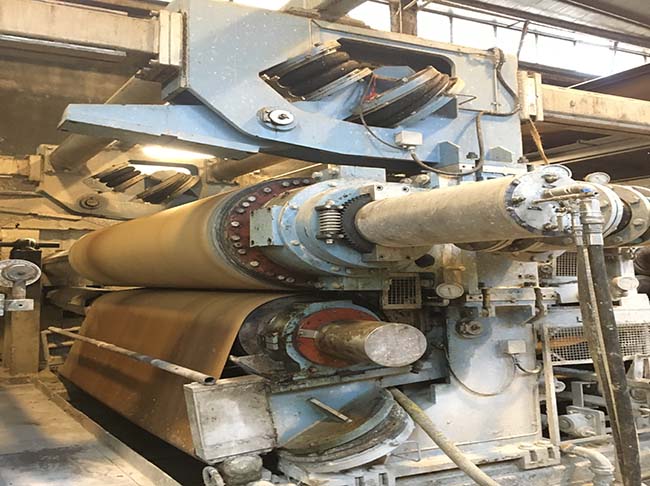

N°1 Suction press section with 2 rolls and 2 suction boxes. Diameter 800 mm and diameter 550 mm. Pressure 40 kg/cml with 2.5 bar
N°2 Plane press 4.5 bar
N°1 Control grammage system manufacturer Fomat.
N°1 Hood Valmet, with steam manual system.

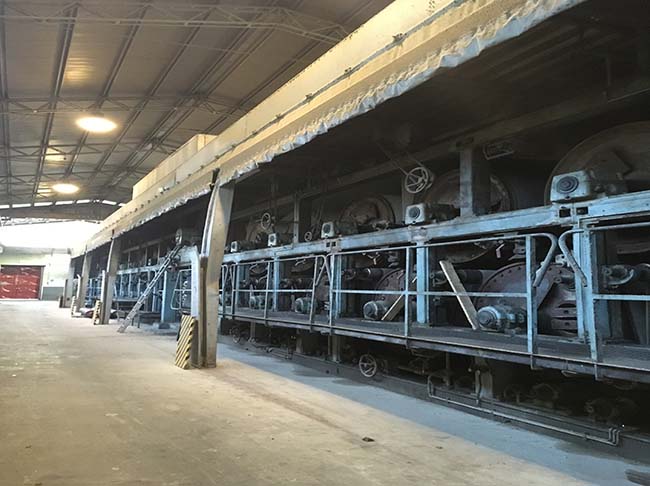

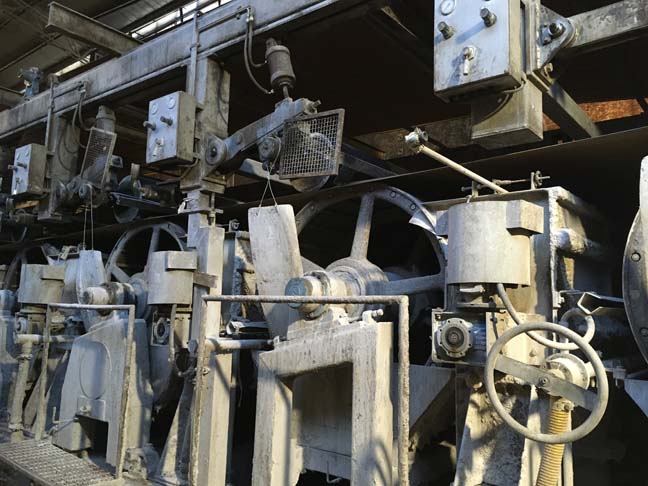

N°26 Dryers diameter 1500 mm, 3 bar.
N°1 Yankee diameter 3500 mm, 3 bar.
N°1 QCS with first and second scanner.
N°1 Calendar 4 rolls.

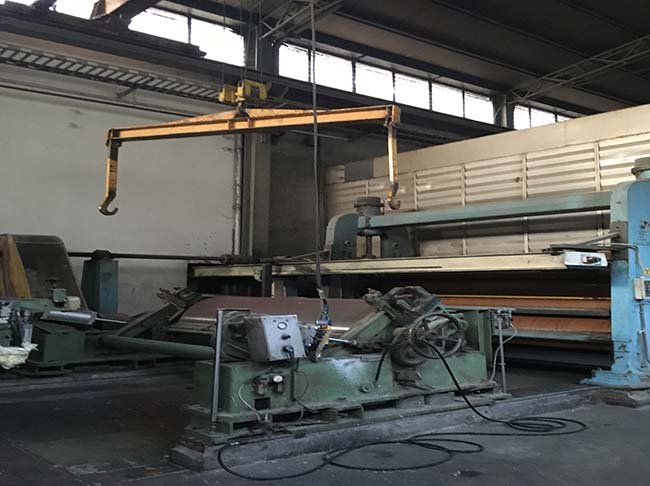

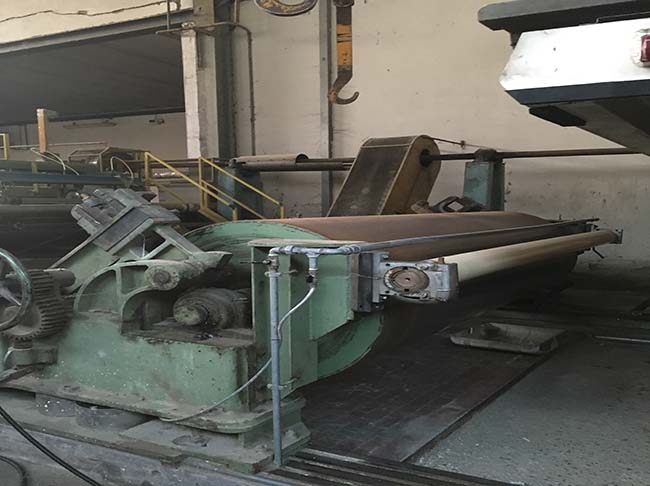

N°1 Manual pope reel, 6 spools.

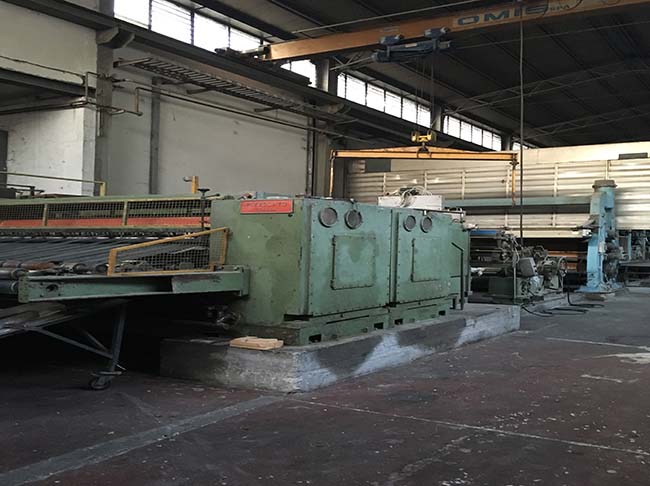

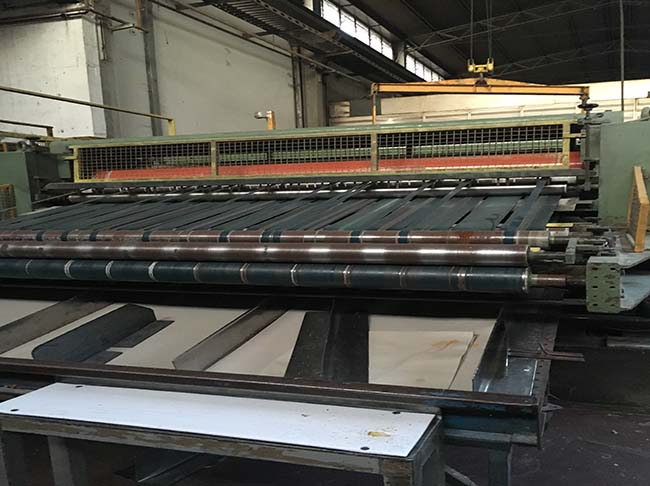

N°1 Sheet cutter mm. 2700 width Synchro, 2 motors connected with pc system.
N°2 Lifters
N°1 Crane 6.3 tons.

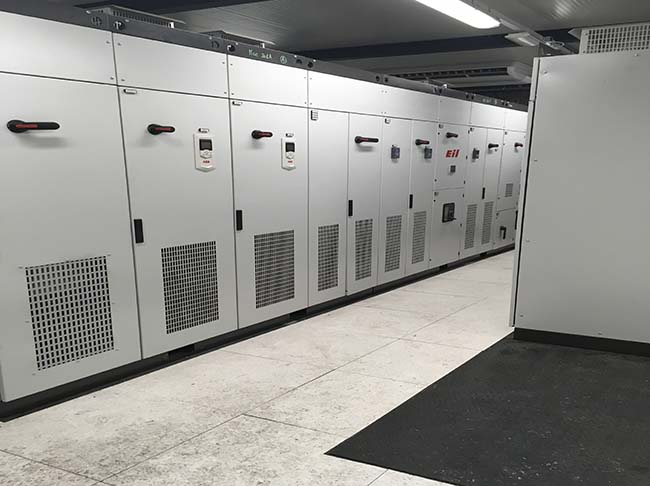

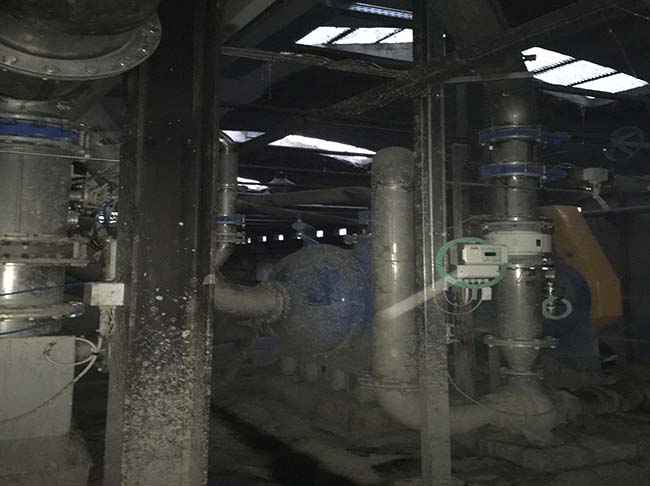

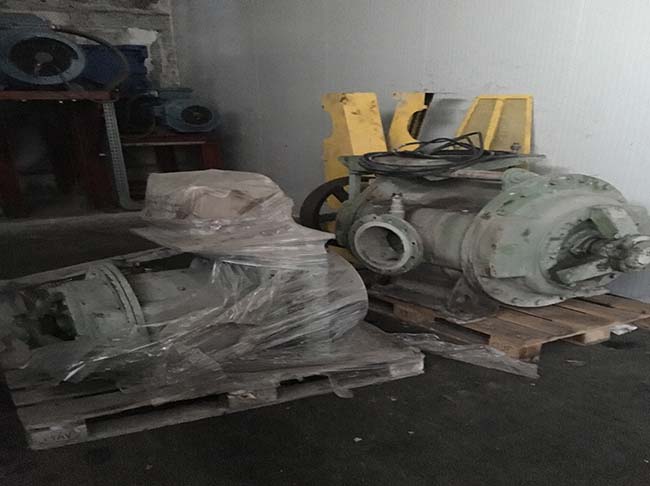

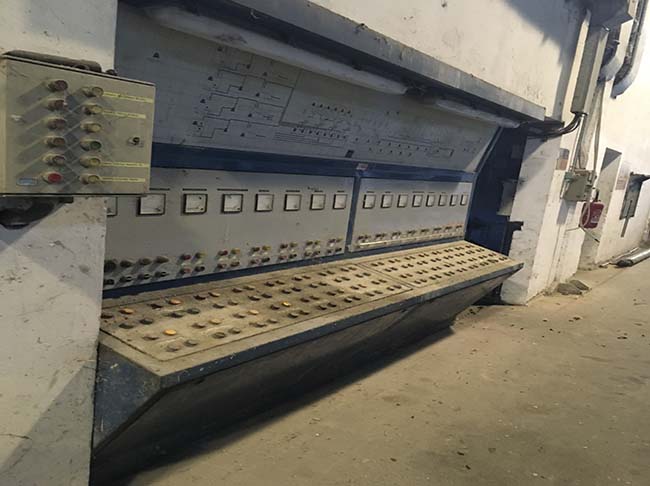

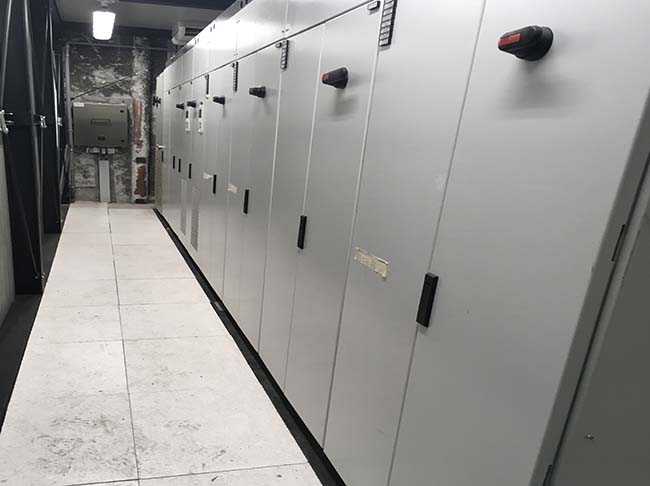

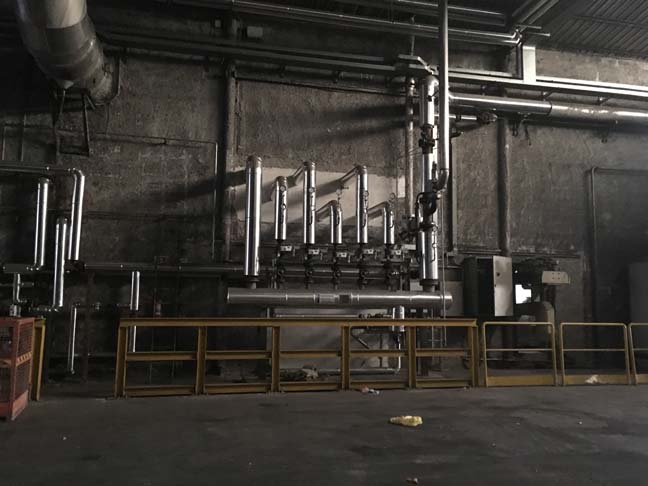

Included : Drive control panels, motors, cables, pumps, spare parts, piping.
