Ref. 231

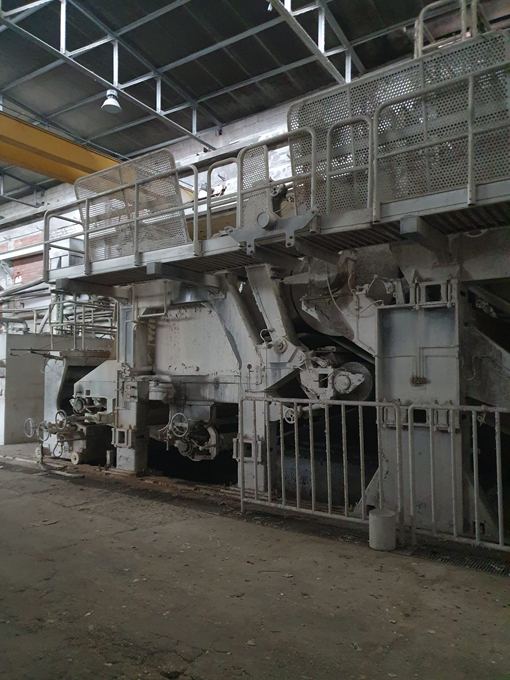

SECOND HAND TISSUE MACHINE REF. 231

TECHNICAL DATA

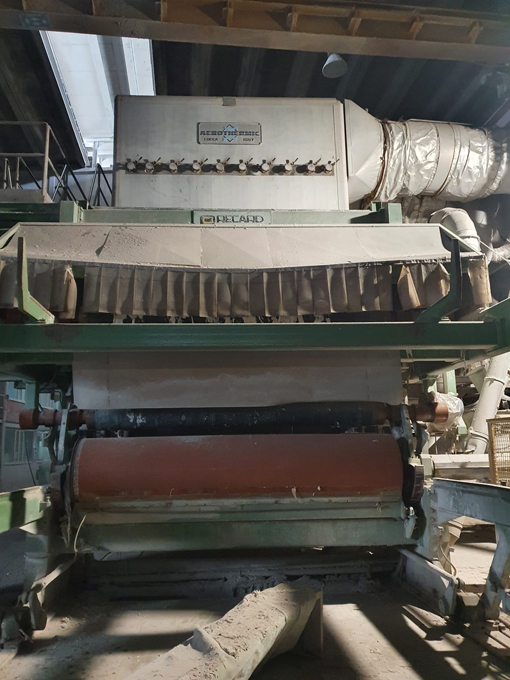

Manufacturer: Recard
Type: Crescent former
Year: 2001 and 2013
Trimmed wudth: 3,10 mt
Production speed: 1600 mt/min
Grammage: 11 to 25 GSM
Pruduction: max 100 ton/day
Raw material: Virgin pulp and recycled

Included PLC

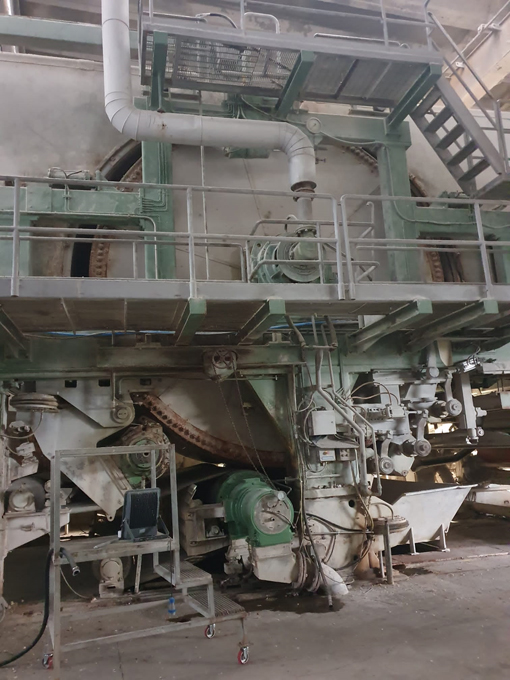

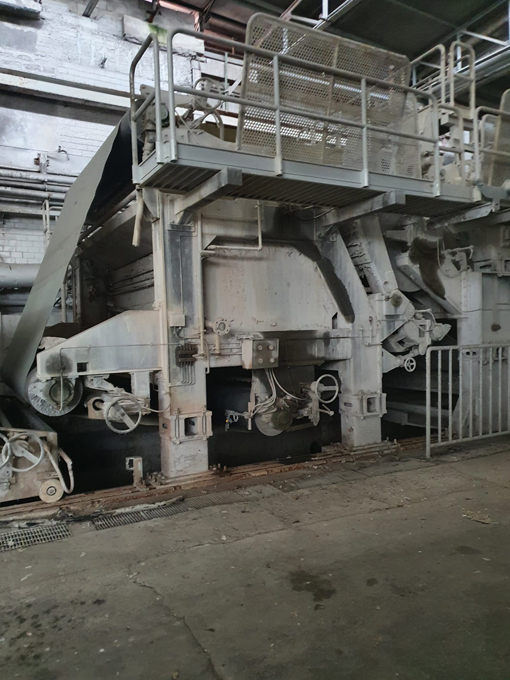

YANKEE CYLINDER

Manufacturer: Valmet
Pressure: 8 bar
Width: 3200 mm
diameter: 5200 mm

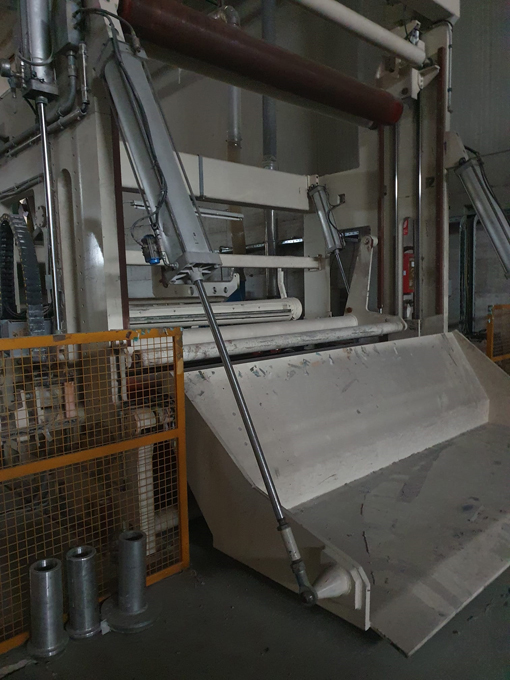

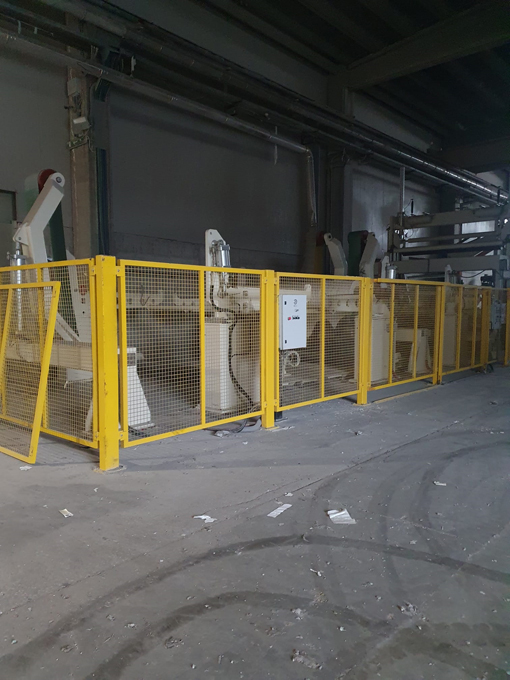

REWINDER 1

Manufacturer: Recard
Year: 2013
Speed: 1500 ton/min
Width: 3200 mm
Rolls diameter: 2,50 mt
Substance: 13 min / 40 max
Numbers of the rolls: n. 3

REWINDER 2

Manufacturer: De Iuliis
Year: 1990
Speed: 1500 ton/min
Width: 3200 mm
Rolls diameter: 2,50 mt
Substance: 13 mmin / 40 max
Numbers of rolls: n. 3

STOCK PREPARATION

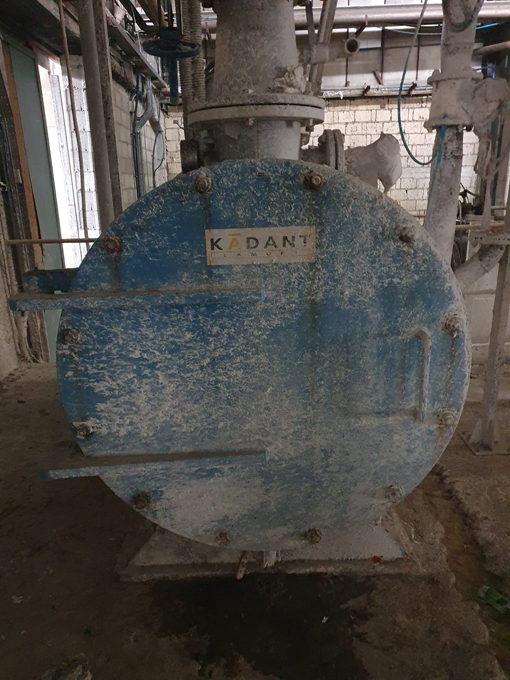

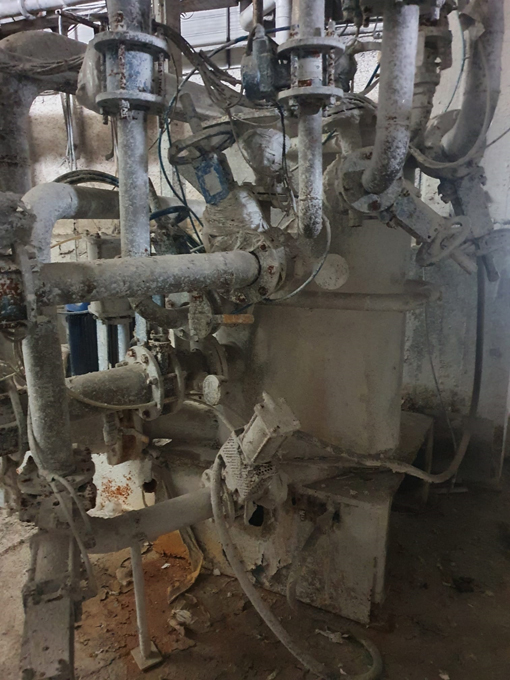

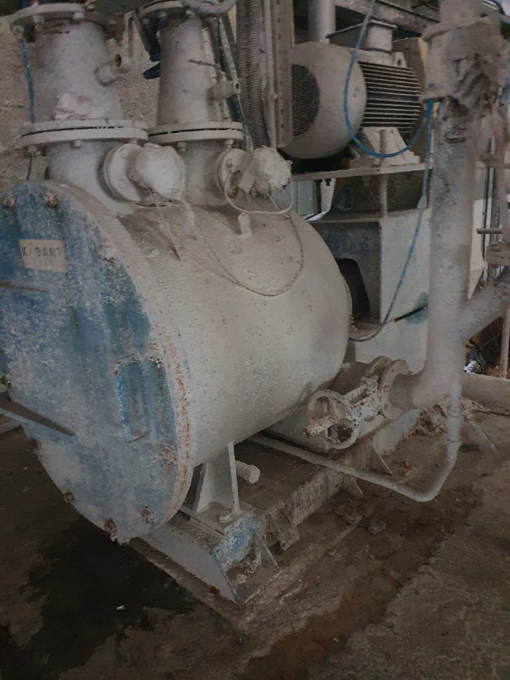

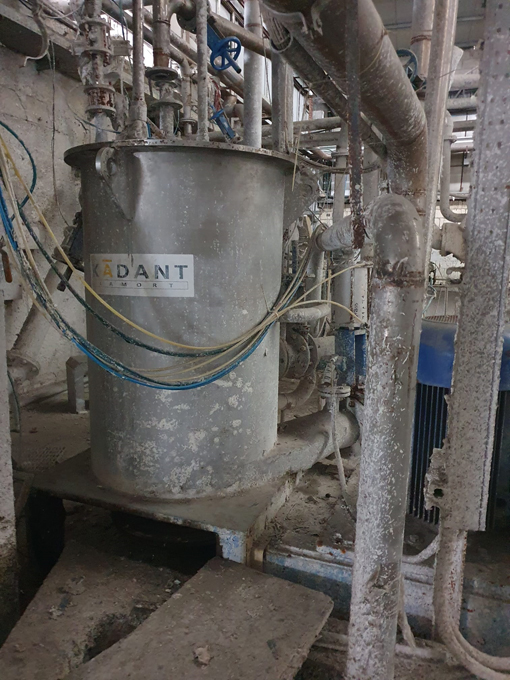

N. 1 Screen - Manufacturer: Kadant - slots type

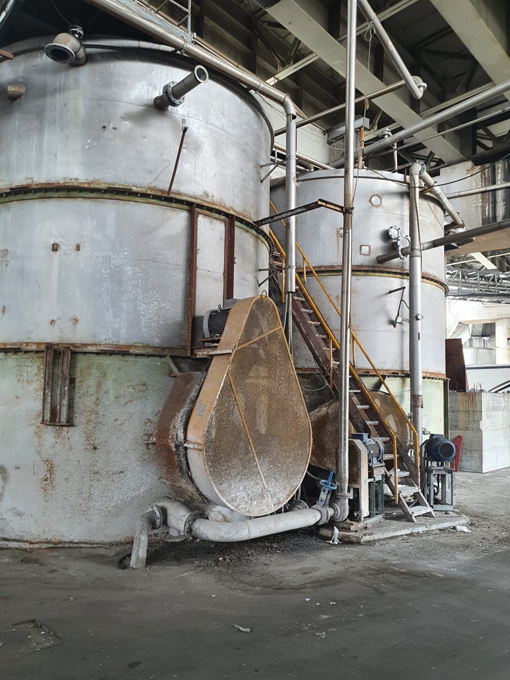

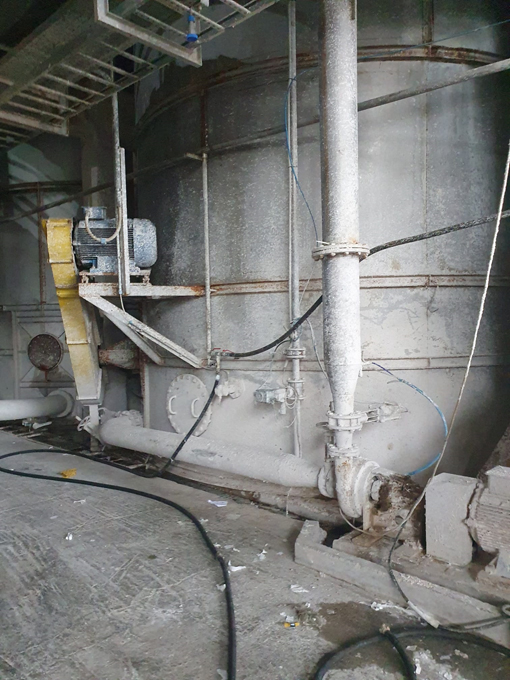

N. 2 Tanks stainless steel - Capacity: 100 m3

N. 1 Screen - Manufacturer: Kadant

N. 1 Screen CH7 - Manufacturer: Kadant

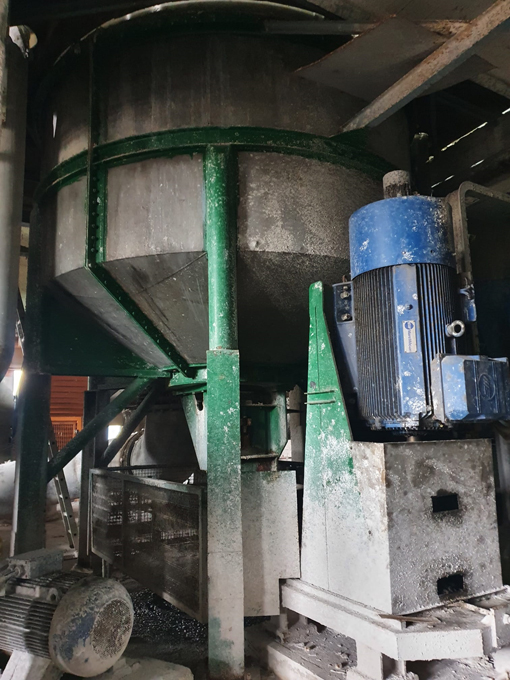

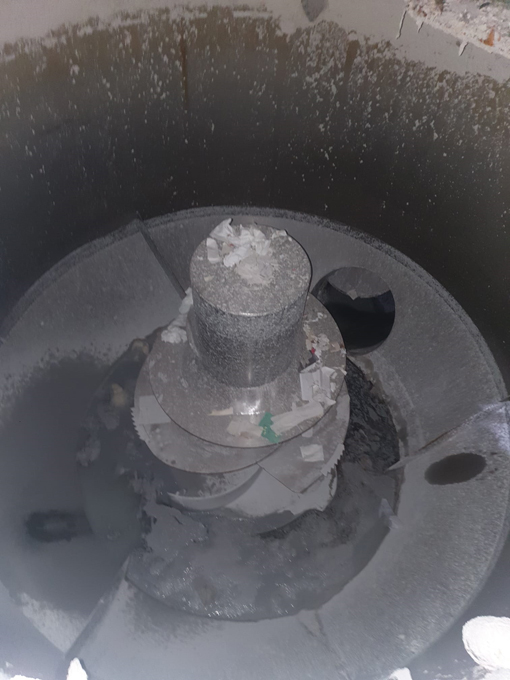

N. High density pulper - Manufacturer: Kadant - Capacity: 25 m3

N. 1 Separplast - Manufacturer: Maule

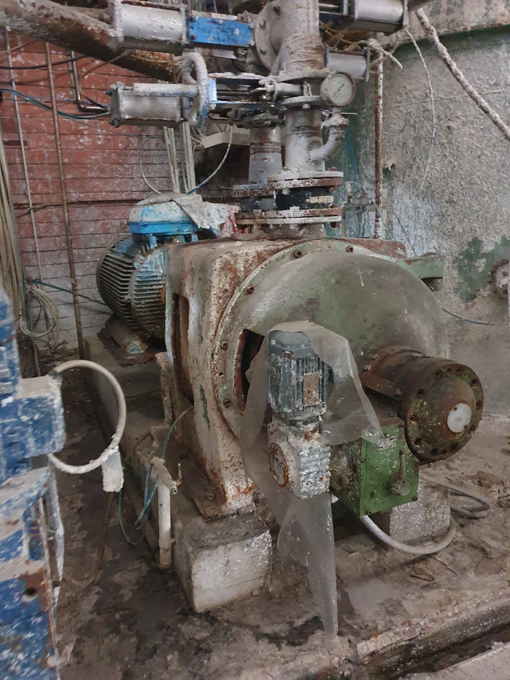

N. 1 Disk refiner - Manufacturer: Recard

N. 1 Low density pulper - Manufacturer: Black Clowson

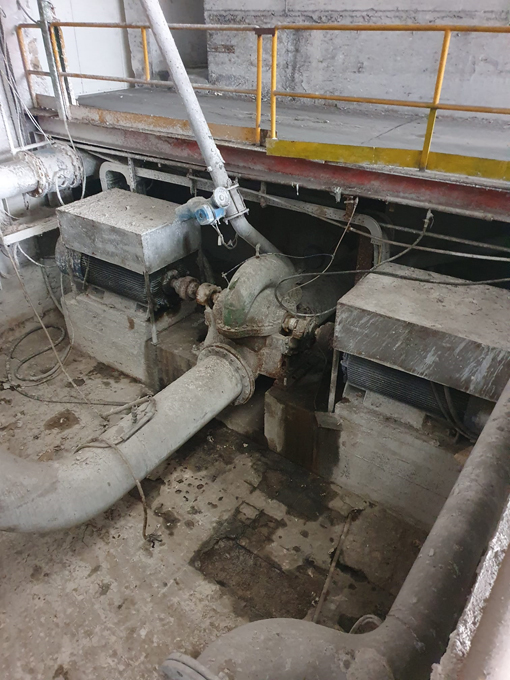

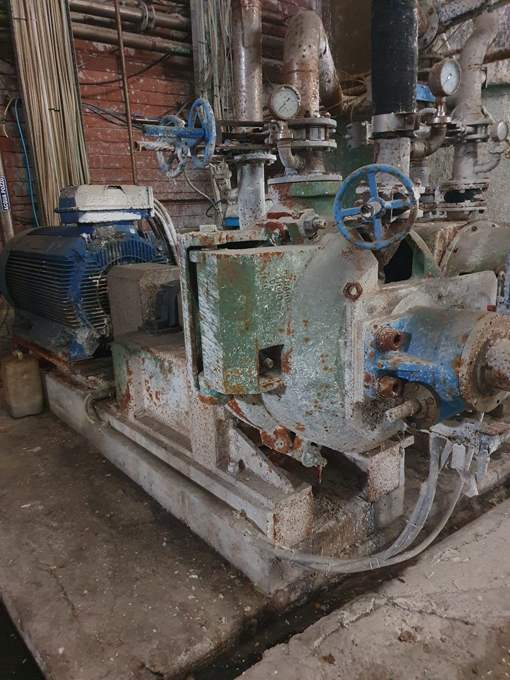

N. 1 Fun pump - Manufacturer: Ahlstrom

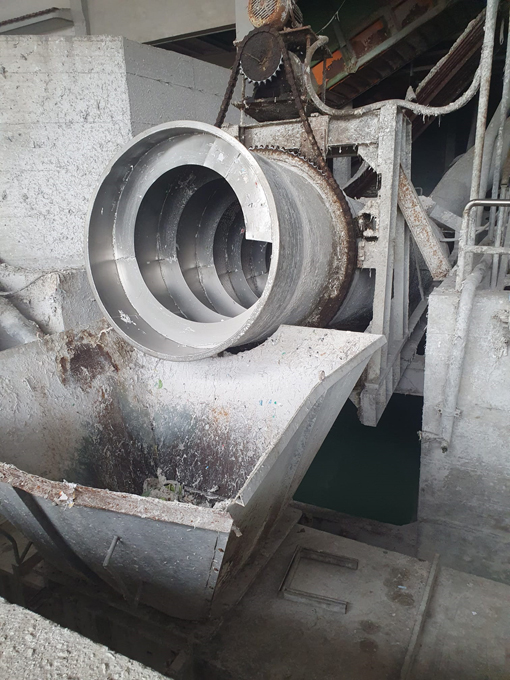

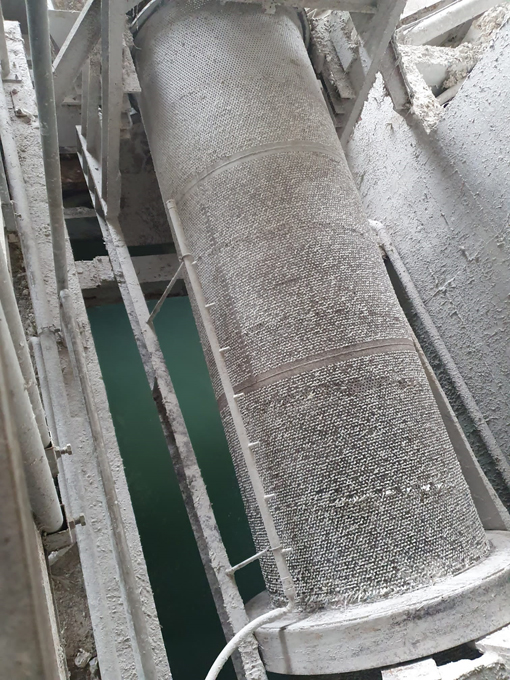

N. 1 Trommel stainless steel - Manufacturer: BF

N. 1Disk refiner - Manufacturer: Bruno

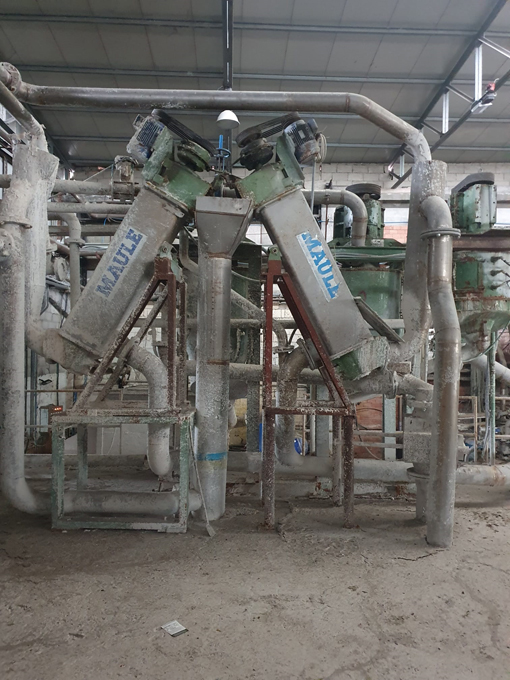

N. 1 Tickening press - Manufacturer: Maule

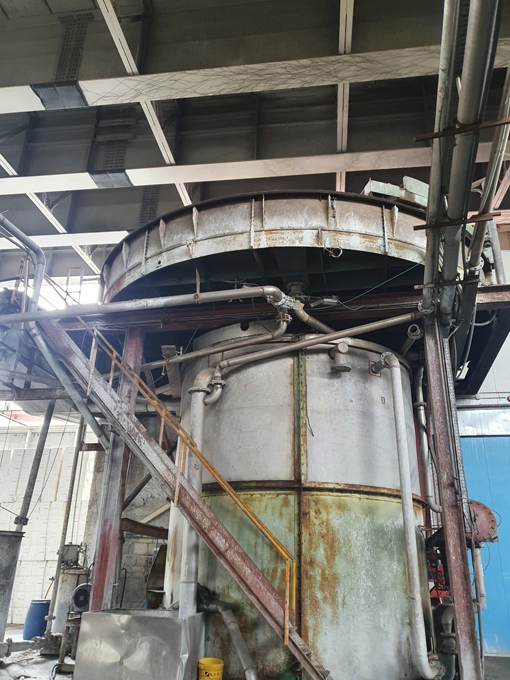

N. 1 Krofta unit
